Your vehicle details
Your vehicle details
Make: Bmw
Model: X1
Engine:
2.0
Year: 2021
Fuel: petrol
Please note this is for guidance only

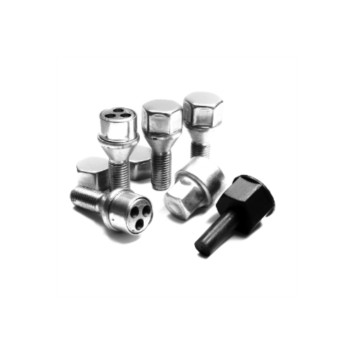

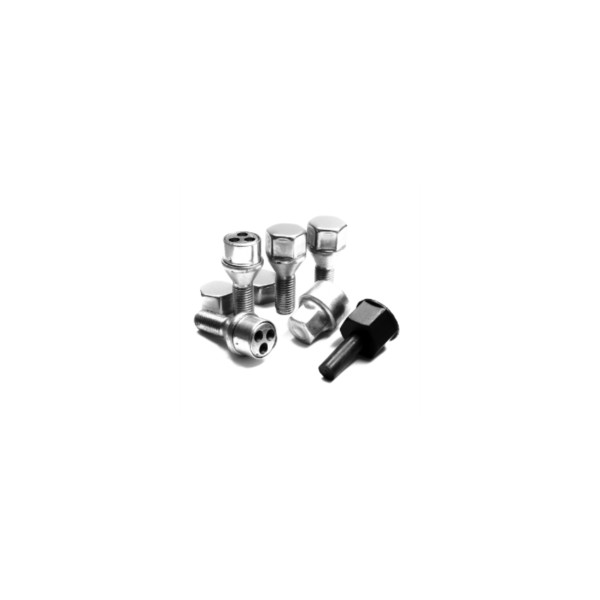

Auto Inparts Wheel Bolt/Nut
£22.49
£18.74
Dimensions
- Part no: OGD
- Thread Size (mm): M12 x 1.25 x 25
- Overall length (mm): 50
- Key hex (mm): 17
- Seat type: 60°
Features
- High quality Trilock Locking Wheel Bolts
- Hardened lock body for maximum strength
- Drill & punch resistant centre
- Stainless steel 360-degree rotary ring makes it evry difficult to grip lock head
- Key hex matches wheel brace supplied with the vehicle
- Precision rolled threads conform to vehicle manufacturers specifications
- Supplied with detailed fitting instructions and a lock key card, all in a touch plastic case
Fits the following vehicles
- X1 2.0 sDrive20i F48 01/18-12/21
- X1 2.0 sDrive20i F48 01/21-04/23
- X1 2.0 xDrive20i F48 01/19-12/21
- X1 2.0 xDrive20i F48 01/21-04/23
In Stock
Fitment details for X1 2.0 sDrive20i F48
| Description | Wheel Lock |
|---|---|
| Engine Code | B48A20M1, B48A20M1 (B48A20A) |
| BHP | 189, 176 |
| Nut/Bolt Type | Bolt |
| Thread Type/Size | M12 x 1.5 |
| Thread Length mm | 25 |
| Seat Type | 60 Degree |
| Hex Size mm | 17 |
| Colour | Silver/Grey |
| Sub Brand | Trilock |
| Wheel Type | Steel, Alloy |
