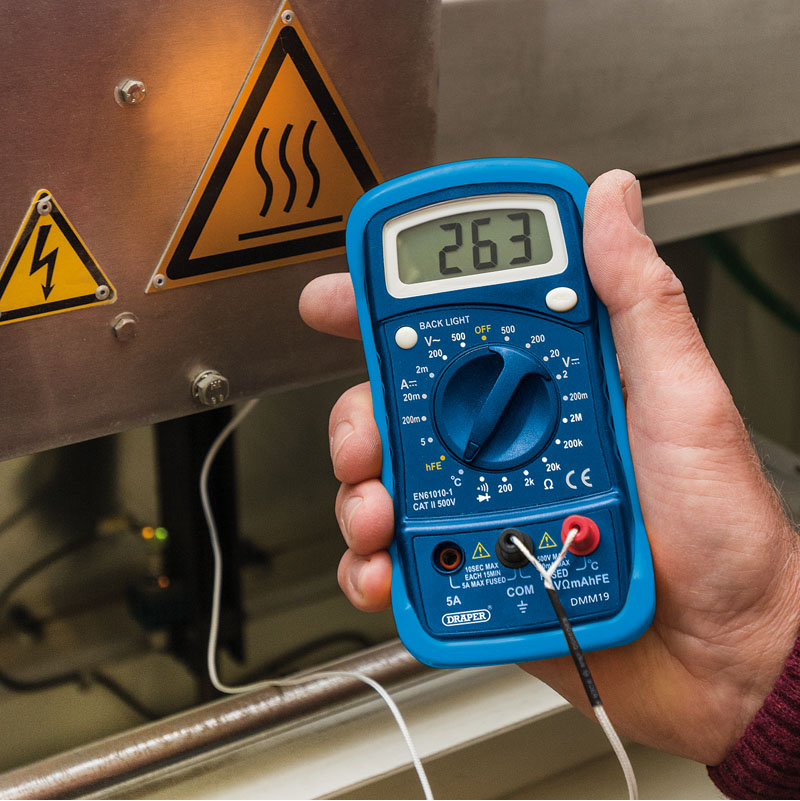

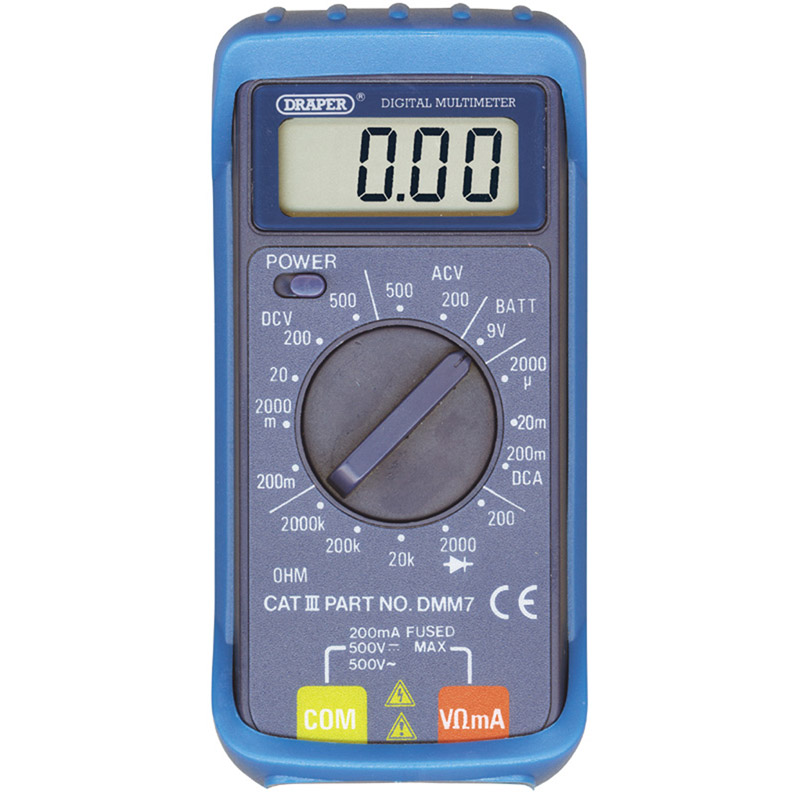

Draper 16-Function Digital Multimeter

In Stock
DT-52320

Measures AC/DC voltage, DC current and resistance. 16-position rotary function and range selector. Supplied with test probes, rubber bump cover and 12V battery.

Features

  • DC Voltage, AC Voltage, DC Current, Resistance, 16 Positions, Recessed input terminals
  • IEC 61010-1 Specification, Hi-impact rubber case, Probe set
  • DC Voltage: 200mV, 2000mV, 20V, 200V, 500V (acc: ± 0.5%)
  • AC Voltage: 200V, 500V (acc: ± 2%)
  • DC Current: 2000uA, 20mA, 200mA (acc: ± 2%)
  • Resistance: 200Ω, 2000Ω, 20Ω, 200kΩ (acc: ± 1.5%)
  • Size (W-H-D): 55 x 112 x 40mm
  • Weight: 70g
  • Battery Type: 1 x 12V (23A)​
Read more...

£12.99

Add to Wishlist
Please log in to create a wishlist
Weight 0.07kg
Size 55mm x 112mm x 40mm

Measures AC/DC voltage, DC current and resistance. 16-position rotary function and range selector. Supplied with test probes, rubber bump cover and 12V battery.

Features

  • DC Voltage, AC Voltage, DC Current, Resistance, 16 Positions, Recessed input terminals
  • IEC 61010-1 Specification, Hi-impact rubber case, Probe set
  • DC Voltage: 200mV, 2000mV, 20V, 200V, 500V (acc: ± 0.5%)
  • AC Voltage: 200V, 500V (acc: ± 2%)
  • DC Current: 2000uA, 20mA, 200mA (acc: ± 2%)
  • Resistance: 200Ω, 2000Ω, 20Ω, 200kΩ (acc: ± 1.5%)
  • Size (W-H-D): 55 x 112 x 40mm
  • Weight: 70g
  • Battery Type: 1 x 12V (23A)​
